Useful Oracle 11gR2 RAC Commands

Useful 11gR2 RAC Commands

Check the status of the cluster

[oracle@rac1 ~]$ crsctl check crs
CRS-4638: Oracle High Availability Services is online
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online

[oracle@rac1 ~]$ crsctl check cluster
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online

[oracle@rac1 ~]$ crsctl check cluster -all
**************************************************************
rac1:
CRS-4537: Cluster Ready Services is online
CRS-4529: Cluster Synchronization Services is online
CRS-4533: Event Manager is online
**************************************************************

Check the status of the services on the cluster

[oracle@rac1 ~]$ crsctl status resource -t
——————————————————————————–
NAME TARGET STATE SERVER STATE_DETAILS
——————————————————————————–
Local Resources
——————————————————————————–
ora.DATA.dg
ONLINE ONLINE rac1
ora.LISTENER.lsnr
ONLINE ONLINE rac1
ora.asm
ONLINE ONLINE rac1
ora.gsd
OFFLINE OFFLINE rac1
ora.net1.network
ONLINE ONLINE rac1
ora.ons
ONLINE ONLINE rac1
ora.registry.acfs
ONLINE ONLINE rac1
——————————————————————————–
Cluster Resources
——————————————————————————–
ora.LISTENER_SCAN1.lsnr
1 ONLINE ONLINE rac1
ora.cvu
1 ONLINE ONLINE rac1
ora.oc4j
1 ONLINE ONLINE rac1
ora.rac1.vip
1 ONLINE ONLINE rac1
ora.rac2.vip
1 OFFLINE OFFLINE
ora.scan1.vip
1 ONLINE ONLINE rac1
ora.testrac.db
1 OFFLINE OFFLINE Instance Shutdown

Stop crs on all nodes (only one node up in this example)

[root@rac1 bin]# ./crsctl stop cluster -all
CRS-2673: Attempting to stop ‘ora.crsd’ on ‘rac1′
CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on ‘rac1′
CRS-2673: Attempting to stop ‘ora.registry.acfs’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.DATA.dg’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.LISTENER.lsnr’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.cvu’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.oc4j’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.LISTENER_SCAN1.lsnr’ on ‘rac1′
CRS-2677: Stop of ‘ora.LISTENER.lsnr’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.rac1.vip’ on ‘rac1′
CRS-2677: Stop of ‘ora.LISTENER_SCAN1.lsnr’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.scan1.vip’ on ‘rac1′
CRS-2677: Stop of ‘ora.scan1.vip’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.rac1.vip’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.cvu’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.registry.acfs’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.oc4j’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.DATA.dg’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.asm’ on ‘rac1′
CRS-2677: Stop of ‘ora.asm’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.ons’ on ‘rac1′
CRS-2677: Stop of ‘ora.ons’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.net1.network’ on ‘rac1′
CRS-2677: Stop of ‘ora.net1.network’ on ‘rac1′ succeeded
CRS-2792: Shutdown of Cluster Ready Services-managed resources on ‘rac1′ has completed
CRS-2677: Stop of ‘ora.crsd’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.ctssd’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.evmd’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.asm’ on ‘rac1′
CRS-2677: Stop of ‘ora.asm’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.cluster_interconnect.haip’ on ‘rac1′
CRS-2677: Stop of ‘ora.evmd’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.cluster_interconnect.haip’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.ctssd’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.cssd’ on ‘rac1′
CRS-2677: Stop of ‘ora.cssd’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.diskmon’ on ‘rac1′
CRS-2677: Stop of ‘ora.diskmon’ on ‘rac1′ succeeded

Stop crs on specifc node

[root@rac1 bin]# ./crsctl stop has
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on ‘rac1′
CRS-2673: Attempting to stop ‘ora.crsd’ on ‘rac1′
CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on ‘rac1′
CRS-2673: Attempting to stop ‘ora.cvu’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.LISTENER.lsnr’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.registry.acfs’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.DATA.dg’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.LISTENER_SCAN1.lsnr’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.oc4j’ on ‘rac1′
CRS-2677: Stop of ‘ora.LISTENER.lsnr’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.rac1.vip’ on ‘rac1′
CRS-2677: Stop of ‘ora.rac1.vip’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.LISTENER_SCAN1.lsnr’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.scan1.vip’ on ‘rac1′
CRS-2677: Stop of ‘ora.scan1.vip’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.cvu’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.oc4j’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.registry.acfs’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.DATA.dg’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.asm’ on ‘rac1′
CRS-2677: Stop of ‘ora.asm’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.ons’ on ‘rac1′
CRS-2677: Stop of ‘ora.ons’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.net1.network’ on ‘rac1′
CRS-2677: Stop of ‘ora.net1.network’ on ‘rac1′ succeeded
CRS-2792: Shutdown of Cluster Ready Services-managed resources on ‘rac1′ has completed
CRS-2677: Stop of ‘ora.crsd’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.drivers.acfs’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.mdnsd’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.crf’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.ctssd’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.evmd’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.asm’ on ‘rac1′
CRS-2677: Stop of ‘ora.asm’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.cluster_interconnect.haip’ on ‘rac1′
CRS-2677: Stop of ‘ora.evmd’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.crf’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.mdnsd’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.cluster_interconnect.haip’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.drivers.acfs’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.ctssd’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.cssd’ on ‘rac1′
CRS-2677: Stop of ‘ora.cssd’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.gipcd’ on ‘rac1′
CRS-2673: Attempting to stop ‘ora.diskmon’ on ‘rac1′
CRS-2677: Stop of ‘ora.gipcd’ on ‘rac1′ succeeded
CRS-2673: Attempting to stop ‘ora.gpnpd’ on ‘rac1′
CRS-2677: Stop of ‘ora.diskmon’ on ‘rac1′ succeeded
CRS-2677: Stop of ‘ora.gpnpd’ on ‘rac1′ succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on ‘rac1′ has completed
CRS-4133: Oracle High Availability Services has been stopped.

Disable CRS from starting on reboot

[root@rac1 bin]# ./crsctl disable has
CRS-4621: Oracle High Availability Services autostart is disabled.

Enable CRS to start on reboot

[root@rac1 bin]# ./crsctl enable has
CRS-4622: Oracle High Availability Services autostart is enabled.

Start crs on specifc node

[root@rac1 bin]# ./crsctl start has
CRS-4123: Oracle High Availability Services has been started.

Check database status

[oracle@rac1 ~]$ srvctl status database -d RACDB
Instance RACDB1 is running on node rac1
Instance RACDB2 is running on node rac2

Stop an instance

[oracle@rac1 ~]$ srvctl stop instance -i RACDB1 -d RACDB
[oracle@rac1 ~]$ srvctl status database -d RACDB
Instance RACDB1 is not running on node rac1
Instance RACDB2 is running on node rac2

Start an instance

[oracle@rac1 ~]$ srvctl start instance -i RACDB1 -d RACDB
[oracle@rac1 ~]$ srvctl status database -d RACDB
Instance RACDB1 is running on node rac1
Instance RACDB2 is running on node rac2

Stop the database

[oracle@rac1 ~]$ srvctl stop database -d RACDB
[oracle@rac1 ~]$ srvctl status database -d RACDB
Instance RACDB1 is not running on node rac1
Instance RACDB2 is not running on node rac2

Start the database

[oracle@rac1 ~]$ srvctl start database -d RACDB
[oracle@rac1 ~]$ srvctl status database -d RACDB
Instance RACDB1 is running on node rac1
Instance RACDB2 is running on node rac2

Stop the listener on a Node

[oracle@rac1 ~]$ srvctl status listener -n rac1
Listener LISTENER is enabled on node(s): rac1
Listener LISTENER is not running on node(s): rac1

Start the listener on a Node

[oracle@rac1 ~]$ srvctl status listener -n rac1
Listener LISTENER is enabled on node(s): rac1
Listener LISTENER is running on node(s): rac1

Check the voting disk

[oracle@rac1 ~]$ crsctl query css votedisk
## STATE File Universal Id File Name Disk group
– —– —————– ——— ———
1. ONLINE 91b18024f9674f83bf5117d3c0996a05 (ORCL:VOL1) [DATA]
Located 1 voting disk(s).

Query the network addresses

[oracle@rac1 ~]$ oifcfg getif
eth0 192.168.245.0 global public
eth1 192.168.126.0 global cluster_interconnect

Show OCR backup – the voting file (disk) is also backed up with the OCR backup

[root@rac1 bin]# ./ocrconfig -showbackup

rac1 2012/07/17 07:47:17 /u01/app/11.2.0/grid/cdata/rac-cluster/backup00.ocr

rac1 2012/07/17 03:47:15 /u01/app/11.2.0/grid/cdata/rac-cluster/backup01.ocr

rac1 2012/07/16 23:47:13 /u01/app/11.2.0/grid/cdata/rac-cluster/backup02.ocr

rac1 2012/07/16 19:47:11 /u01/app/11.2.0/grid/cdata/rac-cluster/day.ocr

rac1 2012/07/16 19:47:11 /u01/app/11.2.0/grid/cdata/rac-cluster/week.ocr

rac1 2012/03/23 11:30:19 /u01/app/11.2.0/grid/cdata/rac-cluster/backup_20120323_113019.ocr

Take a manual backup of the OCR

[root@rac1 bin]# ./ocrconfig -manualbackup

rac1 2012/07/17 10:08:28 /u01/app/11.2.0/grid/cdata/rac-cluster/backup_20120717_100828.ocr

rac1 2012/07/17 10:07:39 /u01/app/11.2.0/grid/cdata/rac-cluster/backup_20120717_100739.ocr

rac1 2012/03/23 11:30:19 /u01/app/11.2.0/grid/cdata/rac-cluster/backup_20120323_113019.ocr

Step by step DNS Configuration on Linux

Step by step DNS Configuration on Linux

       Step by step DNS Configuration on Linux RHEL5/OEL5

Welcome to our page. In this page we are going to discuss about Domain Name Server(DNS) configuration. Later the same DNS configuration going to use Oracle 11g Release 2 Real Application Cluster (RAC) Installations.

---

Step 1 : Login as root and install below listed Bind RPM's.

rpm -Uvh bind-9.3.3-7.el5.i386.rpm \
bind-chroot-9.3.3-7.el5.i386.rpm \
bind-devel-9.3.3-7.el5.i386.rpm \
bind-libbind-devel-9.3.3-7.el5.i386.rpm \
bind-libs-9.3.3-7.el5.i386.rpm \
bind-sdb-9.3.3-7.el5.i386.rpm \
system-config-bind-4.0.3-2.el5.noarch.rpm \

caching-nameserver-9.3.3-7.el5.i386.rpm \

postgresql-libs-8.1.4-1.1.i386.rpm



Step 2: Verify the IP address for the DNS server. Use following command to check the IP address.

[root@dnc ~]# ifconfig
eth0 Link encap:Ethernet HWaddr 00:0C:29:7D:60:F3
inet addr:192.168.1.100 Bcast:192.168.1.255 Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fe7d:60f3/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:28 errors:0 dropped:0 overruns:0 frame:0
TX packets:39 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:4919 (4.8 KiB) TX bytes:5628 (5.4 KiB)
Interrupt:67 Base address:0x2024

Step 3: There are four files we have to edit. Find the below easy steps to configure the DNS server.

1. Create a named.conf file using sample named.caching-nameserver.conf file.

[root@dnc ~]# cd /var/named/chroot/etc/

[root@dnc etc]# ls

localtime named.caching-nameserver.conf named.rfc1912.zones rndc.key

[root@dnc etc]#cp named.caching-nameserver.conf named.conf

2. Edit the named.conf file based on your configuration. For example.

options {
listen-on port 53 { 192.168.1.100; };
# listen-on-v6 port 53 { ::1; };
        directory "/var/named";
        dump-file "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";

        // Those options should be used carefully because they disable port
        // randomization
        // query-source port 53;
        // query-source-v6 port 53;

        allow-query { any; };
        allow-query-cache { localhost; };
        };
logging {
        channel default_debug {
        file "data/named.run";
        severity dynamic;
        };
};
view localhost_resolver {
        match-clients { any; };
        match-destinations { 192.168.1.100; };
        recursion yes;
        include "/etc/named.rfc1912.zones";
};

3. Edit named.rfc1912.zones file. Sample file given below.

zone "." IN {

              type hint;

              file "named.ca";

};

zone "india.com" IN {
                 type master;
                 file "forward.zone";
                 allow-update { none; };
};

zone "localhost" IN {
                 type master;
                 file "localhost.zone";
                 allow-update { none; };
};

zone "1.168.192.in-addr.arpa" IN {

                 type master;

                 file "reverse.zone";

                 allow-update { none; };

};

..

4. Change the permission to the above two files.

chgrp named named.conf

5. Change the directory to below location

cd /var/named/chroot/var/named

cp localdomain.zone forward.zone

cp named.local reverse.zone


6. Modify the forward.zone file. example

$TTL 86400

@          IN     SOA    dnc.india.com.  root.dnc.india.com. (

                         42 ; serial (d. adams)

                         3H ; refresh

                        15M ; retry

                         1W ; expiry

                         1D ) ; minimum

          IN   NS     dnc.india.com.

dnc       IN   A      192.168.1.100



7. Modify the reverse.zone file

$TTL 86400

@        IN     SOA    dnc.india.com.    root.dnc.india.com. (

                       1997022700 ; Serial

                            28800 ; Refresh

                            14400 ; Retry

                          3600000 ; Expire

                          86400 ) ; Minimum

         IN   NS   dnc.india.com.

100      IN   PTR  dnc.india.com.



8. Change the ownership for both the files.

chgrp named reverse.zone

chgrp named forward.zone

9. make an entry to both /etc/hosts and /etc/resolve.conf files. The samples are below.

cat /etc/hosts

192.168.1.100 dnc.india.com dnc

cat /etc/resolve.conf

search india.com

namedserver 192.168.1.100

10. Restart the named services using below statement.

service named restart

11. Verify the DNS server using below statements

[root@dnc named]# dig dnc.india.com

; «» DiG 9.3.6-P1-RedHat-9.3.6-4.P1.el5_4.2 «» dnc.india.com
;; global options: printcmd
;; Got answer:
;; -»HEADER«- opcode: QUERY, status: NOERROR, id: 1483
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 0

;; QUESTION SECTION:
;dnc.india.com. IN A

;; ANSWER SECTION:
dnc.india.com. 86400 IN A 192.168.1.100

;; AUTHORITY SECTION:
india.com. 86400 IN NS dnc.india.com.

;; Query time: 1 msec
;; SERVER: 192.168.1.100#53(192.168.1.100)
;; WHEN: Mon Aug 27 23:54:49 2012
;; MSG SIZE rcvd: 61

12. To check reverse the zone

[root@dnc named]# dig -x 192.168.1.100

; «» DiG 9.3.6-P1-RedHat-9.3.6-4.P1.el5_4.2 «» -x 192.168.1.100
;; global options: printcmd
;; Got answer:
;; -»HEADER«- opcode: QUERY, status: NOERROR, id: 55949
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 2, AUTHORITY: 1, ADDITIONAL: 1

;; QUESTION SECTION:
;100.1.168.192.in-addr.arpa. IN PTR

;; ANSWER SECTION:
100.1.168.192.in-addr.arpa. 86400 IN PTR dnc-priv.india.com.
100.1.168.192.in-addr.arpa. 86400 IN PTR dnc.india.com.

;; AUTHORITY SECTION:
1.168.192.in-addr.arpa. 86400 IN NS dnc.india.com.

;; ADDITIONAL SECTION:
dnc.india.com. 86400 IN A 192.168.1.100

;; Query time: 1 msec
;; SERVER: 192.168.1.100#53(192.168.1.100)
;; WHEN: Mon Aug 27 23:57:27 2012
;; MSG SIZE rcvd: 124

13. To verify DNS Server using nslookup

[root@dnc named]# nslookup dnc.india.com

Server: 192.168.1.100

Address: 192.168.1.100#53

Name: dnc.india.com
Address: 192.168.1.100

DNS server working fine now. Finally we got success.

14. For Oracle 11gR2 RAC Installation adding node Information in/var/named/chroot/var/named/forward.zone file on DNS server.

$TTL    86400

@               IN SOA  dnc.india.com. root.dnc.india.com. (

                                        42              ; serial (d. adams)

                                        3H              ; refresh

                                        15M             ; retry

                                        1W              ; expiry

                                        1D )            ; minimum

                IN NS           dnc.india.com.

dnc             IN A            192.168.1.100

kracnode1       IN A    192.168.1.50

kracnode2       IN A    192.168.1.51

kracnode1-vip   IN A    192.168.1.60

kracnode2-vip   IN A    192.168.1.61

kracnode-scan   IN A    192.168.1.70

kracnode-scan   IN A    192.168.1.71

kracnode-scan   IN A    192.168.1.72

15.  Restart named service as a root user.

[root@dnc named]# service named restart

Stopping named:                                            [  OK  ]

Starting named:                                            [  OK  ]

16. Verify the SCAN names using nslookup.

[root@dnc named]# nslookup kracnode-scan

Server:         192.168.1.100

Address:        192.168.1.100#53

Name:   kracnode-scan.india.com

Address: 192.168.1.72

Name:   kracnode-scan.india.com

Address: 192.168.1.70

Name:   kracnode-scan.india.com

Address: 192.168.1.71

17. Add below files in /etc/resolv.conf  file on all the nodes.

search india.com

nameserver 192.168.1.100

[oracle@krac1 ]# cat /etc/resolv.conf

search india.com

nameserver 192.168.1.100

[root@krac1 bin]# nslookup kracnode-scan

Server:         192.168.1.100

Address:        192.168.1.100#53

Name:   kracnode-scan.india.com

Address: 192.168.1.71

Name:   kracnode-scan.india.com

Address: 192.168.1.72

Name:   kracnode-scan.india.com

Address: 192.168.1.70

Oracle 11gR2 RAC Installation Steps on Linux

Oracle Real Application Cluster(RAC)

Oracle 11gR2 RAC Installation Steps on Linux

Oracle 11g Real Application Cluster Setup Steps

Prepare the cluster nodes for Oracle RAC:

User Accounts:

NOTE: Oracle recommend different users for the installation of the Grid Infrastructure (GI) and the Oracle RDBMS home. The GI will be installed in a separate Oracle base, owned by user 'grid.' After the grid install the GI home will be owned by root, and inaccessible to unauthorized users.

1.  Create OS groups using the command below. Enter these commands as the 'root' user:

#/usr/sbin/groupadd -g 501 oinstall

#/usr/sbin/groupadd -g 502 dba

#/usr/sbin/groupadd -g 503 oper

#/usr/sbin/groupadd -g 504 asmadmin

#/usr/sbin/groupadd -g 506 asmdba

#/usr/sbin/groupadd -g 507 asmoper

2.     Create the users that will own the Oracle software using the commands:

#/usr/sbin/useradd -u 501 -c "Oracle Grid Infrastructure Owner"  -g oinstall -G asmadmin,asmdba,asmoper grid

#/usr/sbin/useradd -u 502 -c "Oracle RDBMS Owner" -g oinstall -G dba,oper,asmdba oracle

3.  Set the password for the oracle account using the following command. Replace password with your own password.

[root@krac1 ~]# passwd grid

Changing password for user grid.

New UNIX password:

BAD PASSWORD: it is based on a dictionary word

Retype new UNIX password:

passwd: all authentication tokens updated successfully.

[root@krac1 ~]#passwd oracle

Changing password for user oracle.

New UNIX password:

BAD PASSWORD: it is based on a dictionary word

Retype new UNIX password:

passwd: all authentication tokens updated successfully.

4.  Repeat Step 1 through Step 3 on each node in your cluster.

Networking:

1.    Determine your cluster name. The cluster name should satisfy the following conditions:The cluster name is globally unique throughout your host domain.  The cluster name is at least 1 character long and less than 15 characters long.  The cluster name must consist of the same character set used for host names: single-byte alphanumeric characters (a to z, A to Z, and 0 to 9) and hyphens (-).

2.  Determine the public host name for each node in the cluster. For the public host name, use the primary host name of each node. In other words, use the name displayed by the hostname command for example:kracnode1.

3.  Determine the public virtual hostname for each node in the cluster. The virtual host name is a public node name that is used to reroute client requests sent to the node if the node is down. Oracle recommends that you provide a name in the format -vip, for example: kracnode1-vip. The virtual hostname must meet the following requirements:

•  The virtual IP address and the network name must not be currently in use.
•  The virtual IP address must be on the same subnet as your public IP address.
•   The virtual host name for each node should be registered with your DNS.

4.      Determine the private hostname for each node in the cluster. This private hostname does not need to be resolvable through DNS and should be entered in the /etc/hosts file. A common naming convention for the private hostname is -pvt.

• The private IP should NOT be accessable to servers not participating in the local cluster.

• The private network should be on standalone dedicated switch(es).

• The private network should NOT be part of a larger overall network topology.
• The private network should be deployed on Gigabit Ethernet or better.
•  It is recommended that redundant NICs are configured with the Linux bonding driver. Active/passive  is the preferred bonding method due to its simplistic configuration.

[root@kracnode2 ~]#  nslookup kracnode1-vip

Server:         192.168.1.100

Address:        192.168.1.100#53

Name:   kracnode1-vip.india.com

Address: 192.168.1.60

[root@kracnode2 ~]#  nslookup kracnode2-vip

Server:         192.168.1.100

Address:        192.168.1.100#53

Name:   kracnode2-vip.india.com

Address: 192.168.1.61

5.   Define a SCAN DNS name for the cluster that resolves to three IP addresses (round-robin). SCAN IPs must NOT be in the /etc/hosts file, the SCAN name must be resolved by DNS. For DNS configuration setup refer blog Step by Step DNS configuration

[root@kracnode2 ~]# nslookup kracnode-scan

Server:         192.168.1.100

Address:        192.168.1.100#53

Name:   kracnode-scan.india.com

Address: 192.168.1.72

Name:   kracnode-scan.india.com

Address: 192.168.1.70

Name:   kracnode-scan.india.com

Address: 192.168.1.71

6.  Even if you are using a DNS, Oracle recommends that you add lines to the /etc/hosts file on each node, specifying the public IP, VIP and private addresses. Configure the /etc/hosts file so that it is similar to the following example:

NOTE: The SCAN IPs MUST NOT be in the /etc/hosts file. This will result in only 1 SCAN IP for the entire cluster. Refer more about Single Client Access Name(SCAN)

################################################################

####### --------------- Local Host ----------------- ###########

################################################################

127.0.0.1         localhost.localdomain         localhost

################################################################

####### ---------------   eth0 - PUBLIC ------------ ###########

################################################################

192.168.1.50      kracnode1.india.com           kracnode1

192.168.1.51      kracnode2.india.com           kracnode2

################################################################

####### --------------------- VIP ------------------ ###########

################################################################

10.10.10.10       kracnode1-priv.india.com      kracnode1-priv

10.10.10.20       kracnode2-priv.india.com      kracnode2-priv

################################################################

####### ----------------  eth1 - PRIVATE ----------- ###########

################################################################

192.168.1.60      kracnode1-vip.india.com       kracnode1-vip

192.168.1.61      kracnode2-vip.india.com       kracnode2-vip

7.      If you configured the IP addresses in a DNS server, then, as the root user, change the hosts search order in /etc/nsswitch.conf on all nodes as shown here:

Old:

hosts: files nis dns

New:

hosts: dns files nis

After modifying the nsswitch.conf file, restart the nscd daemon on each node using the following

command:

# /sbin/service nscd restart

Synchronizing the Time on ALL Nodes:

[root@krac1 ~]# ls -lr /etc/ntp.conf

-rw-r--r-- 1 root root 1833 Dec  9  2009 /etc/ntp.conf

[root@krac1 ~]# service ntpd stop

Shutting down ntpd:                                        [  OK  ]

[root@krac1 ~]# mv /etc/ntp.conf /etc/ntp.conf.bkp

Configuring Kernel Parameter:

1.      As the root user add the following kernel parameter settings to /etc/sysctl.conf. If any of the arameters are already in the /etc/sysctl.conf file, the higher of the 2 values should be used.

kernel.shmmni = 4096

kernel.sem = 250 32000 100 128

fs.file-max = 6553600

net.ipv4.ip_local_port_range = 9000 65500

net.core.rmem_default = 262144

net.core.rmem_max = 4194304

net.core.wmem_default = 262144

net.core.wmem_max = 1048576

NOTE: The latest information on kernel parameter settings for Linux can be found in My Oracle Support ExtNote:169706.1.

2.      Run the following as the root user to allow the new kernel parameters to be put in place:

#/sbin/sysctl -p

3.      Repeat steps 1 and 2 on all cluster nodes.

NOTE: OUI checks the current settings for various kernel parameters to ensure they meet the minimum requirements for deploying Oracle RAC.

4.     Set shell limits for the oracle and grid user:

To improve the performance of the software on Linux systems, you must increase the shell limits for the

oracle user

Add the following lines to the /etc/security/limits.conf file:

grid soft nproc 2047

grid hard nproc 16384

grid soft nofile 1024

grid hard nofile 65536

oracle soft nproc 2047

oracle hard nproc 16384

oracle soft nofile 1024

oracle hard nofile 65536

5.      Add or edit the following line in the /etc/pam.d/login file, if it does not already exist:

session required pam_limits.so

6.       Make the following changes to the default shell startup file, add the following lines to the /etc/profile file:

if [[ $USER = "oracle" ] || [ $USER = "grid" ]]; then

if [ $SHELL = "/bin/ksh" ]; then

ulimit -p 16384

ulimit -n 65536

else

ulimit -u 16384 -n 65536

fi

umask 022

fi

For the C shell (csh or tcsh), add the following lines to the /etc/csh.login file:

if ( $USER = "oracle" || $USER = "grid" ) then

limit maxproc 16384

limit descriptors 65536

endif

7.      Repeat this procedure on all other nodes in the cluster.

Creating the directories.

1.      Create the Oracle Inventory Director:

To create the Oracle Inventory directory, enter the following commands as the root user:

# mkdir -p /u01/app/oraInventory

# chown -R grid:oinstall /u01/app/oraInventory

# chmod -R 775 /u01/app/oraInventory

2.      Creating the Oracle Grid Infrastructure Home Directory:

# mkdir -p /u01/11.2.0/grid

# chown -R grid:oinstall /u01/11.2.0/grid

# chmod -R 775 /u01/11.2.0/grid

3.      Creating the Oracle Base Directory

To create the Oracle Base directory, enter the following commands as the root user:

# mkdir -p /u01/app/oracle

# mkdir /u01/app/oracle/cfgtoollogs #needed to ensure that dbca is able to run after the rdbms installation.

# chown -R oracle:oinstall /u01/app/oracle

# chmod -R 775 /u01/app/oracle

4.      Creating the Oracle RDBMS Home Directory

To create the Oracle RDBMS Home directory, enter the following commands as the root user:

# mkdir -p /u01/app/oracle/product/11.2.0/db_1

# chown -R oracle:oinstall /u01/app/oracle/product/11.2.0/db_1

# chmod -R 775 /u01/app/oracle/product/11.2.0/db_1

Check OS Software Requirements

The OUI will check for missing packages during the install and you will have the opportunity to install them at that point during the prechecks. Nevertheless you might want to validate that all required packages have been installed prior to launching the OUI.

NOTE: These Requirements are for 64-bit versions of Oracle Enterprise Linux 5 and RedHat? Enterprise Linux 5. Requirements for other supported platforms can be found in My Oracle Support ExtNote:169706.1.

binutils-2.15.92.0.2

compat-libstdc++-33-3.2.3

compat-libstdc++-33-3.2.3 (32 bit)

elfutils-libelf-0.97

elfutils-libelf-devel-0.97

expat-1.95.7

gcc-3.4.6

gcc-c++-3.4.6

glibc-2.3.4-2.41

glibc-2.3.4-2.41 (32 bit)

glibc-common-2.3.4

glibc-devel-2.3.4

glibc-headers-2.3.4

libaio-0.3.105

libaio-0.3.105 (32 bit)

libaio-devel-0.3.105

libaio-devel-0.3.105 (32 bit)

libgcc-3.4.6

libgcc-3.4.6 (32-bit)

libstdc++-3.4.6

libstdc++-3.4.6 (32 bit)

libstdc++-devel 3.4.6

make-3.80

pdksh-5.2.14

sysstat-5.0.5

unixODBC-2.2.11

unixODBC-2.2.11 (32 bit)

unixODBC-devel-2.2.11

unixODBC-devel-2.2.11 (32 bit)

The following command can be run on the system to list the currently installed packages:

rpm -q --qf '%{NAME}-%{VERSION}-%{RELEASE} (%{ARCH})\n' binutils \

compat-libstdc++-33 \

elfutils-libelf \

elfutils-libelf-devel \

gcc \

gcc-c++ \

glibc \

glibc-common \

glibc-devel \

glibc-headers \

ksh \

libaio \

libaio-devel \

libgcc \

libstdc++ \

libstdc++-devel \

make \

sysstat \

unixODBC \

unixODBC-devel

Prepare the shared storage for Oracle RAC

     This section describes how to prepare the shared storage for Oracle RAC Each node in a cluster requires external shared disks for storing the Oracle Clusterware (Oracle Cluster Registry and voting disk) files, and Oracle Database files. To ensure high availability of Oracle Clusterware files on Oracle ASM.

• All of the devices in an Automatic Storage Management diskgroup should be the same size and have the same performance characteristics.
• A diskgroup should not contain more than one partition on a single physical disk device. Using logical volumes as a device in an Automatic Storage Management diskgroup is not supported with Oracle RAC.
• The user account with which you perform the installation (typically, 'oracle') must have write permissions to create the files in the path that you specify.

Shared Storage

For this example installation we will be using ASM for Clusterware and Database storage on top of SAN technology. The following Table shows the storage layout for this implementation:

Block Device	ASMlib Name	Size	Comments
/dev/sdb	OCR_VOTE01	1 GB	ASM Diskgroup for OCR and Voting Disks
/dev/sdc	OCR_VOTE02	1 GB	ASM Diskgroup for OCR and Voting Disks
/dev/sdd	OCR_VOTE03	1 GB	ASM Diskgroup for OCR and Voting Disks
/dev/sde	ASM_DATA01	4 GB	ASM Data Diskgroup
/dev/sdf	ASM_DATA02	4 GB	ASM Data Diskgroup
/dev/sdg	ASM_DATA03	4 GB	ASM Flash Recovery Area Diskgroup
/dev/sdh	ASM_DATA04	4 GB	ASM Flash Recovery Area Diskgroup

Partition the Shared Disks:

This section describes how to prepare the shared storage for Oracle RAC.

1.   Once the LUNs have been presented from the SAN to ALL servers in the cluster, partition the LUNs from one node only, run fdisk to create a single whole-disk partition with exactly 1 MB offset on each LUN to be used as ASM Disk

[root@kracnode1 ~]# fdisk /dev/sdc

Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklabel

Building a new DOS disklabel. Changes will remain in memory only,

until you decide to write them. After that, of course, the previous

content won't be recoverable.

Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)

Command (m for help): u

Changing display/entry units to sectors

Command (m for help): n

Command action

   e   extended

   p   primary partition (1-4)

p

Partition number (1-4): 1

First sector (63-2097151, default 63):

Using default value 63

Last sector or +size or +sizeM or +sizeK (63-2097151, default 2097151):

Using default value 2097151

Command (m for help): w

The partition table has been altered!

Calling ioctl() to re-read partition table.

Syncing disks.

[root@kracnode1 ~]#

Load the updated block device partition tables by running the following on ALL servers participating in the cluster:

#/sbin/partprobe

Installing and Configuring ASMLib:

The ASMLib is highly recommended for those systems that will be using ASM for shared storage within the cluster due to the performance and manageability benefits that it provides. Perform the following steps to install and configure ASMLib on the cluster nodes:

1.      Download the following packages from the ASMLib OTN page, if you are an Enterprise Linux customer you can obtain the software through the Unbreakable Linux network.

NOTE: The ASMLib kernel driver MUST match the kernel revision number, the kernel revision number of your system can be identified by running the "uname -r" command. Also, be sure to download the set of RPMs which pertain to your platform architecture, in our case this is i686.

oracleasm-2.6.18-194.el5-2.0.5-1.el5.i686.rpm

oracleasmlib-2.0.4-1.el5.i386.rpm

oracleasm-support-2.1.7-1.el5.i386.rpm

2.      Install the RPMs by running the following as the root user.

[root@kracnode1]# rpm -Uvh oracleasm-2.6.18-194.el5-2.0.5-1.el5.i686.rpm \

> oracleasm-support-2.1.7-1.el5.i386.rpm \

> oracleasmlib-2.0.4-1.el5.i386.rpm

warning: oracleasm-2.6.18-194.el5-2.0.5-1.el5.i686.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159

Preparing...                ########################################### [100%]

   1:oracleasm-support      ########################################### [ 33%]

   2:oracleasm-2.6.18-194.el########################################### [ 67%]

   3:oracleasmlib           ########################################### [100%]

[root@kracnode1]#

3.      Configure ASMLib by running the following as the root user:

[root@kracnode1 ~]# /etc/init.d/oracleasm configure

Configuring the Oracle ASM library driver.

This will configure the on-boot properties of the Oracle ASM library

driver.  The following questions will determine whether the driver is

loaded on boot and what permissions it will have.  The current values

will be shown in brackets ('[]').  Hitting without typing an

answer will keep that current value.  Ctrl-C will abort.

Default user to own the driver interface []: grid

Default group to own the driver interface []: asmdba

Start Oracle ASM library driver on boot (y/n) [n]: y

Scan for Oracle ASM disks on boot (y/n) [y]: y

Writing Oracle ASM library driver configuration: done

Initializing the Oracle ASMLib driver:                     [  OK  ]

Scanning the system for Oracle ASMLib disks:               [  OK  ]

[root@kracnode1 ~]#

4.      Repeat steps 2 - 4 on ALL cluster nodes.

Using ASMLib to Mark the Shared Disks as Candidate Disks:

To create ASM disks using ASMLib:

1.      As the root user, use oracleasm to create ASM disks using the following syntax:

# /usr/sbin/oracleasm createdisk disk_name device_partition_name

Example:

[root@kracnode1 ~]# /usr/sbin/oracleasm createdisk OCR_VOTE01 /dev/sdc1

Writing disk header: done

Instantiating disk: done

[root@kracnode1 ~]# /usr/sbin/oracleasm createdisk OCR_VOTE02 /dev/sdd1

Writing disk header: done

Instantiating disk: done

[root@kracnode1 ~]# /usr/sbin/oracleasm createdisk OCR_VOTE03 /dev/sde1

Writing disk header: done

Instantiating disk: done

[root@kracnode1 ~]# /usr/sbin/oracleasm createdisk ASM_DISK01 /dev/sdf1

Writing disk header: done

Instantiating disk: done

[root@kracnode1 ~]# /usr/sbin/oracleasm createdisk ASM_DISK02 /dev/sdg1

Writing disk header: done

Instantiating disk: done

[root@kracnode1 ~]# /usr/sbin/oracleasm createdisk ASM_DISK03 /dev/sdh1

Writing disk header: done

Instantiating disk: done

[root@kracnode1 ~]# /usr/sbin/oracleasm createdisk ASM_DISK04 /dev/sdi1

Writing disk header: done

Instantiating disk: done

[root@kracnode1 ~]#

2.      Repeat step 1 for each disk that will be used by Oracle ASM.

After you have created all the ASM disks for your cluster, use the listdisks command to verify their availability:

[root@kracnode1 ~]# /usr/sbin/oracleasm listdisks

ASM_DISK01

ASM_DISK02

ASM_DISK03

ASM_DISK04

OCR_VOTE01

OCR_VOTE02

OCR_VOTE03

3.   On all the other nodes in the cluster, use the scandisks command as the root user to pickup the newly created ASM disks. You do not need to create the ASM disks on each node, only on one node in the cluster.

[root@kracnode2 ]# /usr/sbin/oracleasm scandisks

Reloading disk partitions: done

Cleaning any stale ASM disks...

Scanning system for ASM disks...

[root@kracnode2 ]# /usr/sbin/oracleasm listdisks

ASM_DISK01

ASM_DISK02

ASM_DISK03

ASM_DISK04

OCR_VOTE01

OCR_VOTE02

OCR_VOTE03

[root@kracnode2 ]#



Oracle Grid Infrastructure Install. (Basic Grid Infrastructure Install (without GNS and IPMI))

./runInstaller

 Action: Select radio button 'Install and Configure Grid Infrastructure for a Cluster' and click ' Next> '

Action: Select radio button 'Advanced Installation' and click ' Next> '

Action: Accept 'English' as language' and click ' Next> '

Action: Specify your cluster name and the SCAN name you want to use and click ' Next> '
Note: Make sure 'Configure GNS' is NOT selected.

Action:Use the Edit and Add buttons to specify the node names and virtual IP addresses you configured previously in your /etc/hosts file. Use the 'SSH Connectivity' button to configure/test the passwordless SSH connectivity between your nodes.

ACTION: Type in the OS password for the user 'grid' and press 'Setup'

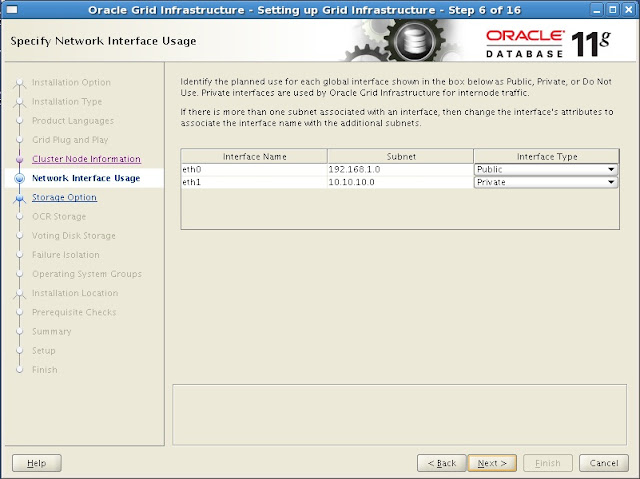

Action:Click on 'Interface Type' next to the Interfaces you want to use for your cluster and select the correct values for 'Public', 'Private' and 'Do Not Use' . When finished click ' Next> '



Action:Select radio button 'Automatic Storage Management (ASM) and click ' Next> '

Action:Select the 'DiskGroup Name' specify the 'Redundancy' and tick the disks you want to use, when done click ' Next> '

NOTE: The number of voting disks that will be created depend on the redundancy level you specify: EXTERNAL will create 1 voting disk, NORMAL will create 3 voting disks, HIGH will create 5 voting disks.

Action:Specify and conform the password you want to use and click ' Next> '

Action:Select NOT to use IPMI and click ' Next> '

Action: Assign the correct OS groups for OS authentication and click ' Next> '

Action:Specify the locations for your ORACLE_BASE and for the Software location and click ' Next> '
Action: Specify the locations for your Inventory directory and click ' Next> '

Note: OUI performs certain checks and comes back with the screen below

Action:Check that status of all checks is Succeeded and click ' Next> '

Action:Click ' Finish'

Action:Follow the instructions on the screen running the orainstRoot.sh and root.sh scripts as root on all  nodes before you click 'OK'

NOTE: The required root scripts MUST BE RUN ON ONE NODE AT A TIME!

Sample root.sh output node 1:

#/u01/app/11.2.0/grid/root.sh

Running Oracle 11g root.sh script...

The following environment variables are set as:

    ORACLE_OWNER= oracle

    ORACLE_HOME=  /u01/app/11.2.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:

   Copying dbhome to /usr/local/bin ...

   Copying oraenv to /usr/local/bin ...

   Copying coraenv to /usr/local/bin ...

Creating /etc/oratab file...

Entries will be added to the /etc/oratab file as needed by

Database Configuration Assistant when a database is created

Finished running generic part of root.sh script.

Now product-specific root actions will be performed.

2009-09-25 20:58:00: Parsing the host name

2009-09-25 20:58:00: Checking for super user privileges

2009-09-25 20:58:00: User has super user privileges

Using configuration parameter file: /u01/app/11.2.0/grid/crs/install/crsconfig_params

Creating trace directory

LOCAL ADD MODE

Creating OCR keys for user 'root', privgrp 'root'..

Operation successful.

  root wallet

  root wallet cert

  root cert export

  peer wallet

  profile reader wallet

  pa wallet

  peer wallet keys

  pa wallet keys

  peer cert request

  pa cert request

  peer cert

  pa cert

  peer root cert TP

  profile reader root cert TP

  pa root cert TP

  peer pa cert TP

  pa peer cert TP

  profile reader pa cert TP

  profile reader peer cert TP

  peer user cert

  pa user cert

Adding daemon to inittab

CRS-4123: Oracle High Availability Services has been started.

ohasd is starting

CRS-2672: Attempting to start 'ora.gipcd' on 'kracnode1'

CRS-2672: Attempting to start 'ora.mdnsd' on 'kracnode1'

CRS-2676: Start of 'ora.gipcd' on 'kracnode1' succeeded

CRS-2676: Start of 'ora.mdnsd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.gpnpd' on 'kracnode1'

CRS-2676: Start of 'ora.gpnpd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.cssdmonitor' on 'kracnode1'

CRS-2676: Start of 'ora.cssdmonitor' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.cssd' on 'kracnode1'

CRS-2672: Attempting to start 'ora.diskmon' on 'kracnode1'

CRS-2676: Start of 'ora.diskmon' on 'kracnode1' succeeded

CRS-2676: Start of 'ora.cssd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.ctssd' on 'kracnode1'

CRS-2676: Start of 'ora.ctssd' on 'kracnode1' succeeded

ASM created and started successfully.

DiskGroup OCR_VOTE created successfully.

clscfg: -install mode specified

Successfully accumulated necessary OCR keys.

Creating OCR keys for user 'root', privgrp 'root'..

Operation successful.

CRS-2672: Attempting to start 'ora.crsd' on 'kracnode1'

CRS-2676: Start of 'ora.crsd' on 'kracnode1' succeeded

CRS-4256: Updating the profile

Successful addition of voting disk 24ce55bef20d4f4ebf16d733a91bc9d3.

Successfully replaced voting disk group with +DATA.

CRS-4256: Updating the profile

CRS-4266: Voting file(s) successfully replaced

##  STATE    File Universal Id                File Name Disk group

--  -----    -----------------                --------- ---------

 1. ONLINE   24ce55bef20d4f4ebf16d733a91bc9d3 (ORCL:OCR_VOTE01) [OCR_VOTE]

 2. ONLINE   24ce55bef20d4f4ebf16d733a91bc9d3 (ORCL:OCR_VOTE02) [OCR_VOTE]

 3. ONLINE   24ce55bef20d4f4ebf16d733a91bc9d3 (ORCL:OCR_VOTE03) [OCR_VOTE]

Located 1 voting disk(s).

CRS-2673: Attempting to stop 'ora.crsd' on 'kracnode1'

CRS-2677: Stop of 'ora.crsd' on 'kracnode1' succeeded

CRS-2673: Attempting to stop 'ora.asm' on 'kracnode1'

CRS-2677: Stop of 'ora.asm' on 'kracnode1' succeeded

CRS-2673: Attempting to stop 'ora.ctssd' on 'kracnode1'

CRS-2677: Stop of 'ora.ctssd' on 'kracnode1' succeeded

CRS-2673: Attempting to stop 'ora.cssdmonitor' on 'kracnode1'

CRS-2677: Stop of 'ora.cssdmonitor' on 'kracnode1' succeeded

CRS-2673: Attempting to stop 'ora.cssd' on 'kracnode1'

CRS-2677: Stop of 'ora.cssd' on 'kracnode1' succeeded

CRS-2673: Attempting to stop 'ora.gpnpd' on 'kracnode1'

CRS-2677: Stop of 'ora.gpnpd' on 'kracnode1' succeeded

CRS-2673: Attempting to stop 'ora.gipcd' on 'kracnode1'

CRS-2677: Stop of 'ora.gipcd' on 'kracnode1' succeeded

CRS-2673: Attempting to stop 'ora.mdnsd' on 'kracnode1'

CRS-2677: Stop of 'ora.mdnsd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.mdnsd' on 'kracnode1'

CRS-2676: Start of 'ora.mdnsd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.gipcd' on 'kracnode1'

CRS-2676: Start of 'ora.gipcd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.gpnpd' on 'kracnode1'

CRS-2676: Start of 'ora.gpnpd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.cssdmonitor' on 'kracnode1'

CRS-2676: Start of 'ora.cssdmonitor' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.cssd' on 'kracnode1'

CRS-2672: Attempting to start 'ora.diskmon' on 'kracnode1'

CRS-2676: Start of 'ora.diskmon' on 'kracnode1' succeeded

CRS-2676: Start of 'ora.cssd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.ctssd' on 'kracnode1'

CRS-2676: Start of 'ora.ctssd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.asm' on 'kracnode1'

CRS-2676: Start of 'ora.asm' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.crsd' on 'kracnode1'

CRS-2676: Start of 'ora.crsd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.evmd' on 'kracnode1'

CRS-2676: Start of 'ora.evmd' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.asm' on 'kracnode1'

CRS-2676: Start of 'ora.asm' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.DATA.dg' on 'kracnode1'

CRS-2676: Start of 'ora.OCR_VOTE.dg' on 'kracnode1' succeeded

CRS-2672: Attempting to start 'ora.registry.acfs' on 'kracnode1'

CRS-2676: Start of 'ora.registry.acfs' on 'kracnode1' succeeded

kracnode1     2010/09/25 21:07:03    /u01/app/11.2.0/grid/cdata/kracnode1/backup_20090925_210703.olr

Preparing packages for installation...

cvuqdisk-1.0.7-1

Configure Oracle Grid Infrastructure for a Cluster ... succeeded

Updating inventory properties for clusterware

Starting Oracle Universal Installer...

Checking swap space: must be greater than 500 MB.   Actual 755 MB   Passed

The inventory pointer is located at /etc/oraInst.loc

The inventory is located at /u01/app/oraInventory

'UpdateNodeList' was successful.

#

Sample root.sh output node 2:



#/u01/app/11.2.0/grid/root.sh

Running Oracle 11g root.sh script...

The following environment variables are set as:

    ORACLE_OWNER= oracle

    ORACLE_HOME=  /u01/app/11.2.0/grid

Enter the full pathname of the local bin directory: [/usr/local/bin]:

   Copying dbhome to /usr/local/bin ...

   Copying oraenv to /usr/local/bin ...

   Copying coraenv to /usr/local/bin ...

Creating /etc/oratab file...

Entries will be added to the /etc/oratab file as needed by

Database Configuration Assistant when a database is created

Finished running generic part of root.sh script.

Now product-specific root actions will be performed.

2009-09-25 21:08:32: Parsing the host name

2009-09-25 21:08:32: Checking for super user privileges

2009-09-25 21:08:32: User has super user privileges

Using configuration parameter file: /u01/app/11.2.0/grid/crs/install/crsconfig_params

Creating trace directory

LOCAL ADD MODE

Creating OCR keys for user 'root', privgrp 'root'..

Operation successful.

Adding daemon to inittab

CRS-4123: Oracle High Availability Services has been started.

ohasd is starting

CRS-4402: The CSS daemon was started in exclusive mode but found an active CSS daemon on node rac1, number 1, and is terminating

CRS-2673: Attempting to stop 'ora.cssdmonitor' on 'kracnode2'

CRS-2677: Stop of 'ora.cssdmonitor' on 'kracnode2' succeeded

An active cluster was found during exclusive startup, restarting to join the cluster

CRS-2672: Attempting to start 'ora.mdnsd' on 'kracnode2'

CRS-2676: Start of 'ora.mdnsd' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.gipcd' on 'kracnode2'

CRS-2676: Start of 'ora.gipcd' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.gpnpd' on 'kracnode2'

CRS-2676: Start of 'ora.gpnpd' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.cssdmonitor' on 'kracnode2'

CRS-2676: Start of 'ora.cssdmonitor' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.cssd' on 'kracnode2'

CRS-2672: Attempting to start 'ora.diskmon' on 'kracnode2'

CRS-2676: Start of 'ora.diskmon' on 'kracnode2' succeeded

CRS-2676: Start of 'ora.cssd' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.ctssd' on 'kracnode2'

CRS-2676: Start of 'ora.ctssd' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.drivers.acfs' on 'kracnode2'

CRS-2676: Start of 'ora.drivers.acfs' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.asm' on 'kracnode2'

CRS-2676: Start of 'ora.asm' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.crsd' on 'kracnode2'

CRS-2676: Start of 'ora.crsd' on 'kracnode2' succeeded

CRS-2672: Attempting to start 'ora.evmd' on 'kracnode2'

CRS-2676: Start of 'ora.evmd' on 'kracnode2' succeeded

kracnode2     2010/09/25 21:13:55    /u01/app/11.2.0/grid/cdata/kracnode2/backup_20090925_211355.olr

Preparing packages for installation...

cvuqdisk-1.0.7-1

Configure Oracle Grid Infrastructure for a Cluster ... succeeded

Updating inventory properties for clusterware

Starting Oracle Universal Installer...

Checking swap space: must be greater than 500 MB.   Actual 1036 MB   Passed

The inventory pointer is located at /etc/oraInst.loc

The inventory is located at /u01/app/oraInventory

'UpdateNodeList' was successful.

 Action: Wait for the OUI to finish the cluster configuration.

Action: You should see the confirmation that installation of the Grid Infrastructure was successful. Click 'Close' to finish the install.

RDBMS Software Install:

change into the directory where you staged the RDBMS software

./runInstaller



Action: Provide your e-mail address, tick the check box and provide your Oracle Support Password if you want to receive Security Updates from Oracle Support and click ' Next> '

Action: Select the option 'Install Database software only' and click ' Next> '

Action: Select 'Real Application Clusters database installation', and select all nodes. Use the 'SSH Connectivity' button to configure/test the passwordless SSH connectivity between your nodes '

 Action: Type the Oracle user password and click "Setup"

Action: To confirm English as selected language click ' Next> '

Action: Make sure radio button 'Enterprise Edition' is ticked, click ' Next> '

Action: Specify path to your Oracle Base and below to the location where you want to store the software (Oracle home). Click ' Next> '

Action:Use the drop down menu to select the names of the Database Administrators and Database perators group and click ' Next> '

Action: Check that the status of all checks is 'Succeeded' and click ' Next> '

Note: If you are sure the unsuccessful checks can be ignored tick the box 'Ignore All' before you click ' Next> '

Action: Perfrom a last check that the information on the screen is correct before you click ' Finish '



Action: Log in to a terminal window as root user and run the root.sh script on the first node. When finished do the same for all other nodes in your cluster as well. When finished click 'OK'

NOTE: root.sh should be run on one node at a time.

Action: Click ' Close ' to finish the installation of the RDBMS Software.

Run ASMCA to create diskgroups

As the grid user start the ASM Configuration Assistant (ASMCA)

#su - grid

cd /u01/11.2.0/grid/bin

./asmca

Action: Click 'Create' to create a new diskgroup

Action: Type in a name for the diskgroup, select the redundancy you want to provide and mark the tick box for the disks you want to assign to the new diskgroup. Click

Repeat the same steps create the diskgroup for the flash recovery area.

Action: Click 'Exit'

Run DBCA to create the database

As the oracle user start the Database Configuration Assistant (DBCA)

#su - oracle

cd /u01/app/oracle/product/11.2.0/db_1/bin

./dbca

Action: choose option 'Create a Database' and click 'Next'

Action: Select the database template that you want to use for your database and click 'Next'

Action: Type in the name you want to use for your database and select all nodes before you click 'Next'

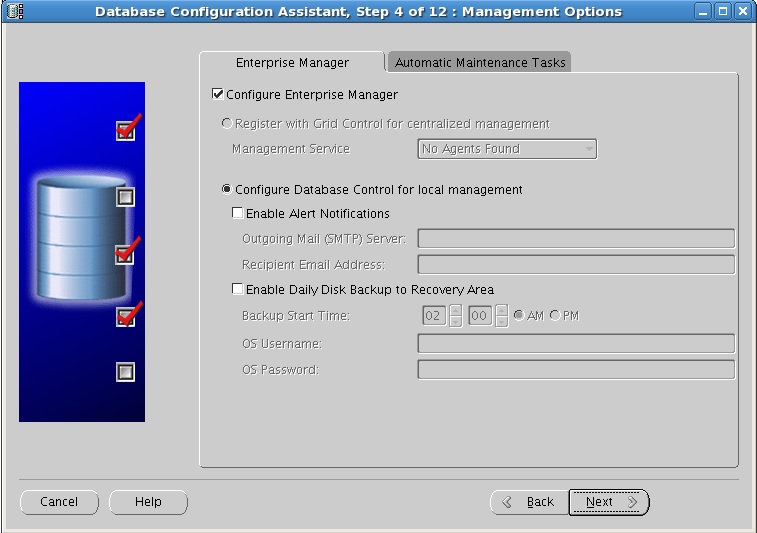

Action: select the options you want to use to manage your database and click 'Next'

Action: Type in the passwords you want to use and click 'Next'

Action: Select the diskgroup you created for the database files and click 'Multiplex Redo Logs and Control Files'. In the popup window define the diskgroup that should contain controlfiles and redo logfiles and the diskgroup that should contain the mirrored files.



Action : Enter the ASMSNMP Password and click "OK"

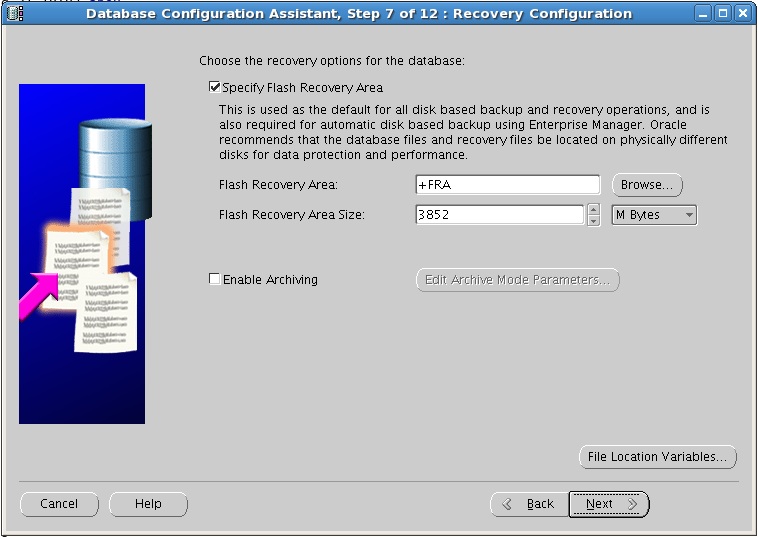

Action: Specify the diskgroup that was created for the flash recovery area and define the size. If the size is smaller than recommended a warning will popup.

Action: Select if you want to have sample schemas created in your database and click 'Next'

Action: Review and change the settings for memory allocation, characterset etc. according to your needs and click 'Next'

Action: Review the database storage settings and click 'Next'

 Action: Review the database storage settings and click 'Next'

Action: The database is now created, you can either change or unlock your passwords or just click Exit to finish the database creation.
